Rubber Mounts

Accurate Products is a leading rubber mounts manufacturer and rubber mounts distributor, we have more than 65 years of experience in serving both the industrial distribution as well as O.E.M. markets with our rubber mounts. If you want to inquire more about our rubber mounts, contact us today!

We carry a large selection of rubber mounts (rubber shock mounts and rubber vibration mounts and more) in a variety of shapes and sizes.

Rubber Mounts Applications

  • Rubber Shock Mounts and Rubber Vibration Mounts for Automotive Industry (rubber motor mounts, rubber engine mounts)

Rectangular Rubber Mounts Models and Sizes

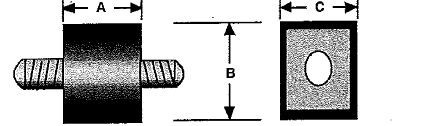

Rectangular Rubber Mounts Models

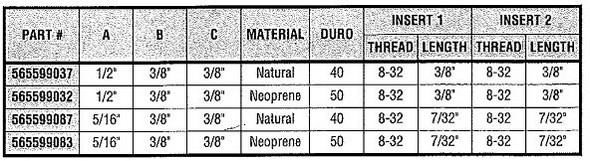

Rectangular Rubber Mounts Size Chart

Specialty Rubber Mounts Models and Sizes


Specialty Rubber Mounts Model

Specialty Rubber Mounts Size Chart

Center Bolt Rubber Mounts Model and Sizes

Center Bolt Rubber Mounts Model

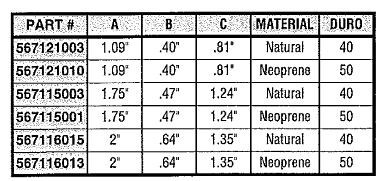

=Center Bolt Rubber Mounts Size Chart

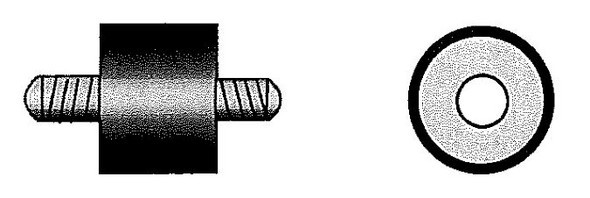

Cylindrical Rubber Mounts Model

 Cylindrical Rubber Mounts Model

CYLINDRICAL MOUNTS SIZING CHART

GRC PART #MOUNT DIAMETERMOUNT LENGTHMATERIALDUROTHREAD
(INSERT 1)
LENGTHTHREAD
(INSERT 2)
LENGTH
5656031067/16"1/2"Natural408-323/8" M8-323/8" M
5656031027/16"1/2"Neoprene508-323/8" M8-323/8' M
5656030209/16"1/2'Natural408-323/8" M8-323/8" M
5656030249/16"1/2'Neoprene508-323/8" M8-323/8" M
5610100763/4"3/8"Natural401/4-201/2" M1/4-201/2" M
5610100293/4"3/8"Neoprene501/4-201/2" M1/4-201/2" M
5657342051"17/32"Natural401/4-201/2" M1/4-201/2" M
5657343211"17/32"Neoprene501/4-201/2" M1/4-201/2" M
5692420141"3/4"Natural405/16-189/16" M5/16-185/8" M
5692420091"3/4"Neoprene505/16-189/16' M5/16-185/8" M
5657341231"3/4"Natural401/4-201/2" M1/4-201/2" M
5657341221"3/4"Neoprene501/4-201/2" M1/4-201/2" M
5692420971'1*Natural405/16-189/16" M5/16-185/8" M
5692420761'1"Neoprene505/16-189/16" M5/16-185/8" M
5057340971'1'Natural401/4-201/2" M1/4-201/2" M
5657342481"1"Neoprene501/4-201/2" M1/4-201/2" M
5692421901"1"Natural405/16-185/8" M5/16-185/8" M
5692421931"1"Neoprene505/16-185/8' M5/16-185/8" M
5692420841 1/4"3/4"Natural405/16-189/16" M5/16-189/16" M
5692421661 1/4"3/4"Neoprene505/16-189/16' M5/16-189/16" M
5610221011 1/4"7/8"Natural405/16-189/16' M5/16-189/16" M
5610220961 1/4"7/8'Neoprene505/16-189/16" M5/16-189/16" M
5610110031 1/4"1 1/4'Natural405/16-189/16" M5/16-189/16" M
5610110061 1/4'1 1/4"Neoprene505/16-189/16" M5/16-189/16" M
5610220601 3/8'5/8"Natural405/16-189/16" M5/16-189/16" M
5610220551 3/8"5/8"Neoprene505/16-189/16" M5/16-189/16" M
5610110721 3/8"1"Natural405/16-189/16" M5/16-189/16" M
5610110671 3/8"1"Neoprene505/16-189/16' M5/16-189/16" M
5610221691 1/2"1'Natural405/16-189/16' M5/16-189/16" M
5610220031 1/2"1"Neoprene505/16-189/16" M5/16-189/16" M
5656031147/16"1/2"Natural408-323/8" M8-32HEX NUT F
5656031927/16"1/2"Neoprene508-323/8" M8-32HEX NUT F
5656030499/16'1/2"Natural408-323/8" M8-323/8" F
5656030459/16"1/2"Neoprene508-323/8" M8-323/8" F
5657341021"3/4"Natural401/4-201/2" M1/4-207/16" F
5657340981"3/4"Neoprene501/4-201/2" M1/4-207/16" F
5657343221"1"Natural401/4-201/2" M1/4-207/16" F

Download the Mounts Sizing Chart

All rubber mounts parts made to your specifications! To order our rubber mounts products, call our order desk:

  • Toll Free: 1-800-782-7776
  • In Illinois, call: 773-878-2200 | Fax:773-878-3239
