Stem Bumpers

Accurate Products is a leading manufacturer and distributor of rubber stem bumpers, we have more than 65 years of experience in serving both the industrial distribution as well as O.E.M. markets. If you want more information about our Rubber Stem Bumpers, contact us today!

Stem Bumpers do not require screws or fasteners like recessed bumpers. We carry a variety of rubber stem bumpers.

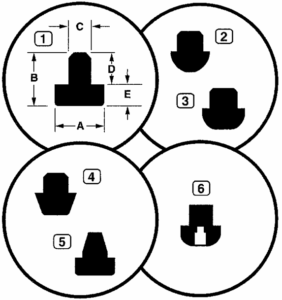

Stem Bumpers Models

A – Outside Diameter

B – Overall Height

C – For ID

D – Stem Height

E – Base Height

STEM BUMPERS by "E" dimension

* Indicates inserting hole in base and stem.
** See also Molded Irregular Design.
Note 1- Tapered .400" to .435" / Note 2- Tapered .520" to .535" / Note 3-Tapered 27/64 to 29/64

PART NO.	FIG. NO.	A	B	C	D	E
6136	1	3/8	.275	3/16	1/4	.025
2677**	6	3/16	1/4	.130	.218	1/32
6135	1	1/2	1/4	3/16	7/32	1/32
602	1	3/16	.134	1/8	3/32	.040
6025	3	7/32	1/4	.170	13/64	3/64
783A	1	3/8	5/16	3/16	1/4	1/16
6012	1	1/4	3/16	11/64	1/8	1/16
11-5	5	1/2	5/16	3/16	1/4	1/16
6034	2	1/2	3/8	.196	5/16	1/16
6053*	1	3/8	15/64	15/64	11/64	1/16
6072	1	1/2	5/16	3/8	1/4	1/16
6073	5	1/2	5/16	15/64	1/4	1/16
1802A	1	15/32	7/16	3/8	3/8	1/16
6234	2	1/2	3/8	.196	5/16	1/16
2645	1	15/64	9/32	.140	7/32	1/16
6178*	1	1/2	.195	.180	.130	.065
6186	1	15/32	.600	3/8	.530	.070
6045	1	3/8	17/64	15/64	3/16	5/64
6134	3	1/2	25/64	.196	1/4	5/64
6137	1	1/2	21/64	3/16	1/4	5/64
6170	5	1/2	21/64	1/4	1/4	5/64
6172	1	1/2	25/64	1/4	5/16	5/64
6041	1	3/8	17/64	.196	3/16	5/64
6023	5	17/64	13/32	.150	5/16	3/32
6048	1	3/8	9/32	.200	3/16	3/32
6075	1	1/2	9/32	1/4	3/16	3/32
6123	5	17/64	13/32	.140	5/16	3/32
6175	1	1/2	11/32	3/16	1/4	3/32
2975A	1	7/16	11/32	1/4	1/4	3/32
6026*	2	.350	.470	.190	.370	.100
6092	1	5/8	27/64	.483	5/16	7/64
653	1	.196	11/64	.130	1/16	7/64
2643	1	5/8	11/32	17/64	15/64	7/64
601	2	1/4	7/32	1/8	3/32	1/8
604	3	3/8	5/16	.196	3/16	1/8
607	1	1/2	7/16	5/16	5/16	1/8
6011	2	1/4	5/16	1/8	3/16	1/8
6013	2	1/4	5/16	0.126	3/16	1/8
6043	3	3/8	1/4	0.196	1/8	1/8
6049	1	3/8	19/64	0.197	11/64	1/8
6052*	2	3/8	3/8	3/16	1/4	1/8
6066*	2	7/16	1/4	5/16	1/8	1/8
6067	1	7/16	3/8	1/4	1/4	1/8
6071	1	1/2	15/32	1/4	0.336	1/8
6078	5	1/2	3/8	15/64	1/4	1/8
6079	1	1/2	7/16	19/64	5/16	1/8
6084*	1	7/16	11/32	9/32	7/32	1/8
6085	1	27/64	5/16	0.26	3/16	1/8
6091	5	5/8	1/2	0.507	3/8	1/8
6097	1	9/16	27/64	7/16	19/64	1/8
6171*	1	1/2	3/8	1/4	1/4	1/8
6177	5	1/2	15/32	0.289	11/32	1/8
6179*	1	1/2	5/16	0.266	3/16	1/8
6076	1	15/32	29/64	5/16	5/16	9/64
605	2	3/8	13/32	9/32	1/4	5/32
6035*	3	9/16	9/32	7/16	1/8	5/32
6046	1	3/8	11/32	3/16	3/16	5/32
6047*	1	3/8	1/2	0.302	11/32	5/32
6051	2	3/8	7/16	1/4	9/32	5/32
6077	5	1/2	1/2	0.289	11/32	5/32
6087	1	7/16	11/32	1/4	3/16	5/32
2646	2	0.312	11/32	0.19	0.187	0.156
6065	2	27/64	22/64	1/4	1/4	11/64
506	6	3/8	3/8	3/16	3/16	3/16
603	3	1/2	5/16	1/4	1/8	3/16
606	2	7/16	5/16	3/16	1/8	3/16
608*	3	7/16	1/2	5/16	5/16	3/16
6031	2	1/2	5/16	13/64	1/8	3/16
6061	2	7/16	5/16	7/32	1/8	3/16
6062	2	7/16	7/16	1/4	1/4	3/16
6063	2	7/16	5/16	0.238	1/8	3/16
6064* 1/16' hole in shank	2	7/16	7/16	1/4	1/4	3/16
6081*	1	1/2	7/16	3/8	1/4	3/16
6082*	1	1/2	3/8	3/8	3/16	3/16
6083*	1	7/16	5/16	5/16	1/8	3/16
6173	1	1/2	9/16	0.37	3/8	3/16
2652	1	7/8	9/16	1/2	3/8	0.187
609	1	5/8	19/32	0.443	3/8	7/32
6093*	1	5/8	19/32	0.443	3/8	7/32
799A	1	5/8	23/32	7/16	1/2	7/32
507	6	1/2	7/16	1/4	3/16	1/4
610	3	11/16	19/32	17/32	11/32	1/4
671	4	15/32	11/16	3/8	7/16	1/4
5071	6	1/2	7/16	9/32	3/16	1/4
6032	2	1/2	11/16	7/16	7/16	1/4
6033	2	1/2	11/16	13/32	7/16	1/4
6042	3	3/8	7/16	0.196	3/16	1/4
6044	4	3/8	9/16	0.196	5/16	1/4
6095*	1	5/8	5/8	3/8	3/8	1/4
6102	3	11/16	5/8	9/16	0.362	1/4
6103	3	11/16	5/8	0.605	3/8	1/4
2656	4	3/8	9/16	3/16	9/32	9/32
613	3	5/8	23/32	7/16	7/16	9/32
6131	3	5/8	23/32	Note	7/16	9/32
6132	3	5/8	23/32	Note	7/16	9/32
614	2	5/8	5/8	Note	5/16	5/16
868A	2	5/8	9/16	5/16	1/4	5/16
6133	3	5/8	29/32	0.557	19/32	5/16
6080	4	1/2	41/64	3/16	5/16	21/64
6139	4	39/64	11/16	0.38	11/32	11/32
612	2	13/16	7/8	11/16	1/2	3/8
6101	3	11/16	3/4	17/32	3/8	3/8
6121	2	13/16	1	9/16	5/8	3/8
6122	2	13/16	7/8	21/32	1/2	3/8
1006A	2	7/8	27/32	1/2	15/32	3/8
1111A	2	3/4	3/4	3/8	3/8	3/8
6088	1	5/8	15/16	7/16	1/2	7/16
6089	1	7/16	15/16	5/16	1/2	7/16
6167	1	7/16	31/32	1/4	1/2	15/32
6096	4	5/8	15/16	5/16	7/16	1/2

Download the Stem Bumper Sizing Chart

Stem Bumpers Applications

•  Push In Bumpers
•  Hole Plugs
•  Shock Vibration / Shock Absorption
•  Noise Reduction
•  Soft Stem Bumpers – Gentle Cushion for Cabinet Doors / Drawers

We make rubber stem bumpers to your specifications! To place an order, call our order desk:

• TOLL FREE 1-800-782-7776
• In Illinois, call: 773-878-2200 | Fax:773-878-3239
