MIL SPEC Grommets Models
Download the MIL SPEC Grommets Sizing Chart
|

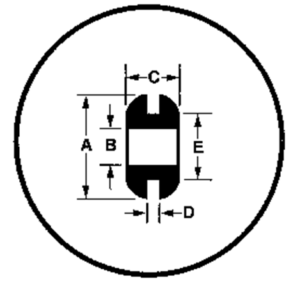

A – Outside Diameter |
B – Inside Diameter | C – Overall Thickness | D – Material Thickness | E – For Hole Diameter |
F – Flange Diameter |

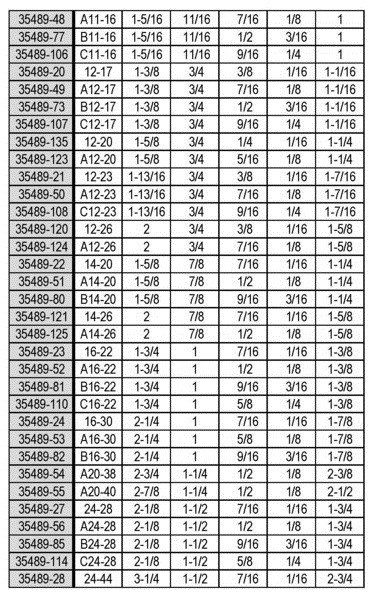

MIL SPEC GROMMETS SIZING CHART
| MS PART NO. 35489 | AN FIG. NO. AN931 | A | B | C | D | E |
|---|---|---|---|---|---|---|
| 35489-1 | 210 | 11/32 | 1/8 | 3/16 | 1/16 | 1/4 |
| 35489-3 | 2-16 | 1-1/4 | 1/8 | 1/4 | 1/16 | 1 |
| 35489-32 | A2-16 | 1-1/4 | 1/8 | 5/16 | 1/8 | 1 |
| 35489-2 | 2-9 | 3/4 | 1/8 | 3/16 | 1/16 | 9/16 |
| 35489-31 | A2-9 | 3/4 | 1/8 | 1/4 | 1/8 | 9/16 |
| 35489-5 | 3-10 | 7/8 | 3/16 | 3/16 | 1/16 | 5/8 |
| 35489-34 | A3-10 | 7/8 | 3/16 | 1/4 | 1/8 | 5/8 |
| 35489-63 | B3-10 | 7/8 | 3/16 | 5/16 | 3/16 | 5/8 |
| 35489-4 | 3-5 | 7/16 | 3/16 | 3/16 | 1/16 | 5/16 |
| 35489-33 | A3-5 | 7/16 | 3/16 | 1/4 | 1/8 | 5/16 |
| 35489-62 | B3-5 | 7/16 | 3/16 | 5/16 | 3/16 | 5/16 |
| 35489-91 | C3-5 | 7/16 | 3/16 | 3/8 | 1/4 | 5/16 |
| 35489-134 | 3-9 | 3/4 | 3/16 | 3/16 | 1/16 | 9/16 |
| 35489-137 | A3-9 | 3/4 | 3/16 | 1/4 | 1/8 | 9/16 |
| 35489-7 | 4-12 | 1 | 1/4 | 1/4 | 1/16 | 3/4 |
| 35489-36 | A4-12 | 1 | 1/4 | 5/16 | 1/8 | 3/4 |
| 35489-65 | B4-12 | 1 | 1/4 | 3/8 | 3/16 | 3/4 |
| 35489-94 | C4-12 | 1 | 1/4 | 7/16 | 1/4 | 3/4 |
| 35489-8 | 4-16 | 1-1/4 | 1/4 | 1/4 | 1/16 | 1 |
| 35489-37 | A4-16 | 1-1/4 | 1/4 | 5/16 | 1/8 | 1 |
| 35489-6 | 4-7 | 5/8 | 1/4 | 3/16 | 1/16 | 7/16 |
| 35489-35 | A4-7 | 5/8 | 1/4 | 1/4 | 1/8 | 7/16 |
| 35489-64 | B4-7 | 5/8 | 1/4 | 5/16 | 3/16 | 7/16 |
| 35489-93 | C4-7 | 5/8 | 1/4 | 3/8 | 1/4 | 7/16 |
| 35489-10 | 5-12 | 1 | 5/16 | 5/16 | 1/16 | 3/4 |
| 35489-39 | A5-12 | 1 | 5/16 | 3/8 | 1/8 | 3/4 |
| 35489-68 | B5-12 | 1 | 5/16 | 7/16 | 3/16 | 3/4 |
| 35489-9 | C5-12 | 1 | 5/16 | 1/2 | 1/4 | 3/4 |
| 35489-118 | 5-13 | 1-1/16 | 5/16 | 5/16 | 1/16 | 13/16 |
| 35489-122 | A5-13 | 1-1/16 | 5/16 | 3/8 | 1/8 | 13/16 |
| 35489-9 | 5-9 | 13/16 | 5/16 | 5/16 | 1/16 | 9/16 |
| 35489-38 | A5-9 | 13/16 | 5/16 | 3/8 | 1/8 | 9/16 |
| 35489-67 | B5-9 | 13/16 | 5/16 | 7/16 | 3/16 | 9/16 |
| 35489-95 | C5-9 | 13/16 | 5/16 | 1/2 | 1/4 | 9/16 |
| 930-1 | 11/16 | 3/8 | 9/32 | 1/16 | 1/2 | |
| 903-2 | 3/4 | 3/8 | 3/8 | 1/16 | 9/16 | |
| 930-3 | 3/4 | 3/8 | 3/4 | 3/8 | 9/16 | |
| 35489-11 | 6-10 | 7/8 | 3/8 | 5/16 | 1/16 | 5/8 |
| 35489-40 | A6-10 | 7/8 | 3/8 | 3/8 | 1/8 | 5/8 |
| 35489-69 | B6-10 | 7/8 | 3/8 | 7/16 | 3/16 | 5/8 |
| 35489-57 | B6-10S | 7/8 | 3/8 | 7/16 | 3/16 | 5/8 |
| 35489-98 | C6-10 | 7/8 | 3/8 | 1/2 | 1/4 | 5/8 |
| 35489-12 | 6-16 | 1-1/4 | 3/8 | 1/4 | 1/16 | 1 |
| 35489-41 | A6-16 | 1-1/4 | 3/8 | 5/16 | 1/8 | 1 |
| 35489-99 | C6-16 | 1-1/4 | 3/8 | 7/16 | 1/4 | 1 |
| 35489-13 | 7-11 | 15/16 | 7/16 | 5/16 | 1/16 | 11/16 |
| 35489-42 | A7-11 | 15/16 | 7/16 | 3/8 | 1/8 | 11/16 |
| 35489-71 | B7-11 | 15/16 | 7/16 | 7/16 | 3/16 | 11/16 |
| 35489-149 | 930-41 | 1 | 1/2 | 1/4 | 1/16 | 3/4 |
| 35489-150 | 930-4 | 1 | 1/2 | 9/32 | 3/32 | 3/4 |
| 930-42 | 1 | 1/2 | 5/16 | 1/8 | 3/4 | |
| 35489-14 | 8-13 | 1-1/16 | 1/2 | 5/16 | 1/16 | 13/16 |
| 35489-43 | A8-13 | 1-1/16 | 1/2 | 3/8 | 1/8 | 13/16 |
| 35489-72 | B8-13 | 1-1/16 | 1/2 | 7/16 | 3/16 | 13/16 |
| 35489-101 | C8-13 | 1-1/16 | 1/2 | 1/2 | 1/4 | 13/16 |
| 35489-15 | 8-20 | 1-1/2 | 1/2 | 1/4 | 1/16 | 1-1/4 |
| 35489-44 | A8-20 | 1-1/2 | 1/2 | 5/16 | 1/8 | 1-1/4 |
| 35489-73 | B8-20 | 1-1/2 | 1/2 | 3/8 | 3/16 | 1-1/4 |
| 35489-102 | C8-20 | 1-1/2 | 1/2 | 1/2 | 1/4 | 1-1/4 |
| 35489-16 | 9-13 | 1-1/16 | 9/16 | 5/16 | 1/16 | 13/16 |
| 35489-45 | A9-13 | 1-1/16 | 9/16 | 3/8 | 1/8 | 13/16 |
| 35489-74 | B9-13 | 1-1/16 | 9/16 | 7/16 | 3/16 | 13/16 |
| 35489-103 | C9-13 | 1-1/16 | 9/16 | 1/2 | 1/4 | 13/16 |
| 35489-17 | 10-14 | 1-1/8 | 5/8 | 5/16 | 1/16 | 7/8 |
| 35489-46 | A10-14 | 1-1/8 | 5/8 | 3/8 | 1/8 | 7/8 |
| 35489-75 | B10-14 | 1-1/8 | 5/8 | 7/16 | 3/16 | 7/8 |
| 35489-104 | C10-14 | 1-1/8 | 5/8 | 1/2 | 1/4 | 7/8 |
| 35489-18 | 10-20 | 1-1/2 | 5/8 | 1/4 | 1/16 | 1-1/4 |
| 35489-47 | A10-20 | 1-1/2 | 5/8 | 5/16 | 1/8 | 1-1/4 |
| 35489-19 | 11-16 | 1-5/16 | 11/16 | 3/8 | 1/16 | 1 |
| 35489-48 | A11-16 | 1-5/16 | 11/16 | 7/16 | 1/8 | 1 |
| 35489-77 | B11-16 | 1-5/16 | 11/16 | 1/2 | 3/16 | 1 |
| 35489-106 | C11-16 | 1-5/16 | 11/16 | 9/16 | 1/4 | 1 |
| 35489-20 | 12-17 | 1-3/8 | 3/4 | 3/8 | 1/16 | 1-1/16 |
| 35489-49 | A12-17 | 1-3/8 | 3/4 | 7/16 | 1/8 | 1-1/16 |
| 35489-73 | B12-17 | 1-3/8 | 3/4 | 1/2 | 3/16 | 1-1/16 |
| 35489-107 | C12-17 | 1-3/8 | 3/4 | 9/16 | 1/4 | 1-1/16 |
| 35489-135 | 12-20 | 1-5/8 | 3/4 | 1/4 | 1/16 | 1-1/4 |
| 35489-123 | A12-20 | 1-5/8 | 3/4 | 5/16 | 1/8 | 1-1/4 |
| 35489-21 | 12-23 | 1-13/16 | 3/4 | 3/8 | 1/16 | 1-7/16 |
| 35489-50 | A12-23 | 1-13/16 | 3/4 | 7/16 | 1/8 | 1-7/16 |
| 35489-108 | C12-23 | 1-13/16 | 3/4 | 9/16 | 1/4 | 1-7/16 |
| 35489-120 | 12-26 | 2 | 3/4 | 3/8 | 1/16 | 1-5/8 |
| 35489-124 | A12-26 | 2 | 3/4 | 7/16 | 1/8 | 1-5/8 |
| 35489-22 | 14-20 | 1-5/8 | 7/8 | 7/16 | 1/16 | 1-1/4 |
| 35489-51 | A14-20 | 1-5/8 | 7/8 | 1/2 | 1/8 | 1-1/4 |
| 35489-80 | B14-20 | 1-5/8 | 7/8 | 9/16 | 3/16 | 1-1/4 |
| 35489-121 | 14-26 | 2 | 7/8 | 7/16 | 1/16 | 1-5/8 |
| 35489-125 | A14-26 | 2 | 7/8 | 1/2 | 1/8 | 1-5/8 |
| 35489-23 | 16-22 | 1-3/4 | 1 | 7/16 | 1/16 | 1-3/8 |
| 35489-52 | A16-22 | 1-3/4 | 1 | 1/2 | 1/8 | 1-3/8 |
| 35489-81 | B16-22 | 1-3/4 | 1 | 9/16 | 3/16 | 1-3/8 |
| 35489-110 | C16-22 | 1-3/4 | 1 | 5/8 | 1/4 | 1-3/8 |
| 35489-24 | 16-30 | 2-1/4 | 1 | 7/16 | 1/16 | 1-7/8 |
| 35489-53 | A16-30 | 2-1/4 | 1 | 5/8 | 1/8 | 1-7/8 |
| 35489-82 | B16-30 | 2-1/4 | 1 | 9/16 | 3/16 | 1-7/8 |
| 35489-54 | A20-38 | 2-3/4 | 1-1/4 | 1/2 | 1/8 | 2-3/8 |
| 35489-55 | A20-40 | 2-7/8 | 1-1/4 | 1/2 | 1/8 | 2-1/2 |
| 35489-27 | 24-28 | 2-1/8 | 1-1/2 | 7/16 | 1/16 | 1-3/4 |
| 35489-56 | A24-28 | 2-1/8 | 1-1/2 | 1/2 | 1/8 | 1-3/4 |
| 35489-85 | B24-28 | 2-1/8 | 1-1/2 | 9/16 | 3/16 | 1-3/4 |
| 35489-114 | C24-28 | 2-1/8 | 1-1/2 | 5/8 | 1/4 | 1-3/4 |
| 35489-28 | 24-44 | 3-1/4 | 1-1/2 | 7/16 | 1/16 | 2-3/4 |
Accurate Products is a leading manufacturer and distributor of military specification grommets; we have more than 65 years of experience in serving both the industrial distribution as well as O.E.M. markets with mil spec grommets. If you want to inquiry more information about our mil spec rubber grommets, contact us today!
We make military specification grommets to your specifications! To place an order, call our order desk:
- TOLL FREE 1-800-782-7776
- In Illinois, call: 773-878-2200 | Fax:773-878-3239
