Accurate Products, with more than 65 years of expertise in rubber products manufacturing, is committed to providing high-quality products that cater to the needs of various industries. Our product range includes rubber grommets of all sizes and shapes, customized to fit unique applications.

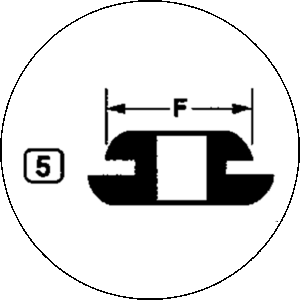

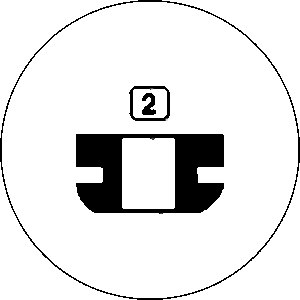

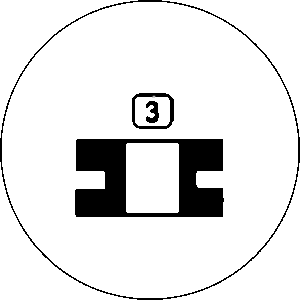

Rubber Grommet Models/Shapes
|
A – Outside Diameter |
B – Inside Diameter | C – Overall Thickness | D – Material Thickness | E – For Hole Diameter |
F – Flange Diameter |

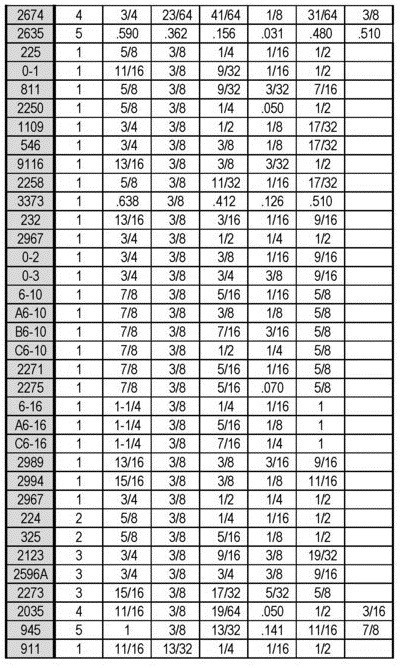

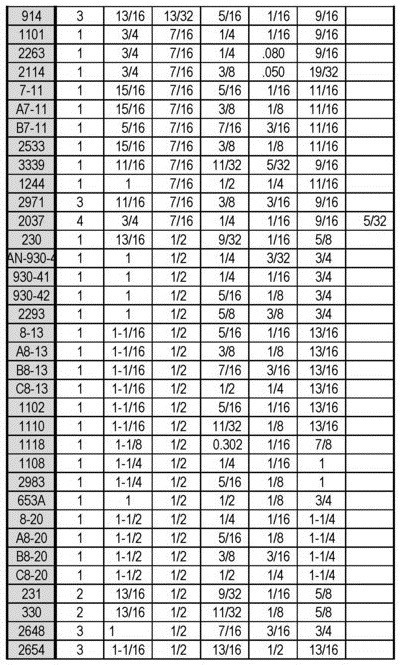

RUBBER GROMMETS SIZING CHART by "B" dimension
* Indicates I.D. is chamfered. / † Military Part Number, Other D dimensions available. Note- Tapers .755/.53| PART NO. | FIG. NO. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| 2417 | 1 | 5/8 | SOLID | 3/16 | 1/16 | 7/16 | |
| 2127 | 1 | 9/32 | 1/16 | 3/16 | 1/16 | 3/16 | |
| 2111 | 1 | 0.3 | 0.09 | 0.192 | 0.07 | 0.24 | |
| 2697 | 5 | 0.312 | 0.093 | 0.145 | 0.041 | 0.234 | 0.265 |
| 2174 | 1 | 1/2 | 3/32 | 3/16 | 1/16 | 3/8 | |
| 283G | 1 | 9/32 | 3/32 | 1/4 | 1/8 | 3/16 | |
| 2253 | 1 | 5/8 | 3/32 | 1/4 | 3/64 | 7/16 | |
| 2110 | 1 | 3/8 | 0.1 | 3/16 | 0.06 | 1/4 | |
| 2121 | 1 | 11/32 | 0.105 | 3/16 | 1/16 | 1/4 | |
| 2104 | 1 | 11/32 | 7/64 | 3/16 | 1/16 | 13/64 | |
| 111G | 1 | 1/4 | 7/64 | 1/16 | 3/64 | 5/32 | |
| 1272A | 1 | 11/16 | 7/64 | 9/32 | 3/64 | 1/2 | |
| 2109 | 1 | 0.34 | 0.12 | 0.22 | 0.06 | 0.25 | |
| 2101 | 1 | 1/4 | 1/8 | 1/8 | 1/32 | 3/16 | |
| 80G | 1 | 11/32 | 1/8 | 1/4 | 1/8 | 15/64 | |
| 2102 | 2 | 11/32 | 1/8 | 3/16 | 1/16 | 3/16 | |
| 2105 | 1 | 11/32 | 1/8 | 3/16 | 1/16 | 3/16 | |
| 2113 | 1 | 5/16 | 1/8 | 3/16 | 1/16 | 3/16 | |
| 54A | 1 | 11/32 | 1/8 | 3/16 | 1/16 | 1/4 | |
| 211 | 2 | 11/32 | 1/8 | 3/16 | 1/16 | 1/4 | |
| 2106 | 1 | 5/16 | 1/8 | 5/32 | 0.04 | 1/4 | |
| 2190 | 5 | 9/16 | 1/8 | 3/16 | 1/16 | 1/4 | 3/8 |
| 57G | 1 | 9/16 | 1/8 | 3/8 | 1/8 | 13/32 | |
| 2157 | 1 | 7/16 | 1/8 | 7/32 | 1/16 | 5/16 | |
| 2116 | 1 | 17/32 | 1/8 | 1/4 | 1/16 | 3/8 | |
| 578G | 1 | 5/8 | 1/8 | 1/4 | 1/16 | 7/16 | |
| AN931-2-9† | 1 | 3/4 | 1/8 | 3/16 | 1/16 | 9/16 | |
| AN931-2-16† | 1 | 1-1/4 | 1/8 | 1/4 | 1/16 | 1 | |
| 663 | 4 | 3/8 | 9/64 | 11/32 | 5/64 | 15/64 | 13/64 |
| 661 | 4 | 3/8 | 9/64 | 0.357 | 0.071 | 1/4 | 7/32 |
| 2151 | 1 | 15/32 | 9/64 | 9/32 | 3/32 | 5/16 | |
| 2153 | 1 | 15/32 | 9/64 | 1/4 | 1/16 | 5/16 | |
| 2631 | 5 | 9/16 | 9/64 | 31/64 | 1/8 | 25/64 | 29/64 |
| 2262 | 1 | 5/8 | 9/64 | 1/4 | 3/64 | 7/16 | |
| 2107 | 3 | 5/16 | 0.15 | 0.128 | 1/16 | 1/4 | |
| 2108 | 1 | 0.32 | 0.156 | 0.158 | 0.031 | 0.24 | |
| 2112 | 1 | 0.3 | 0.156 | 0.192 | 0.07 | 0.24 | |
| 414 | 1 | 13/32 | 5/32 | 3/8 | 3/32 | 17/64 | |
| 32G | 1 | 5/16 | 5/32 | 13/64 | 3/64 | 15/64 | |
| 2103 | 3 | 5/16 | 5/32 | 3/16 | 3/32 | 1/4 | |
| 1259A | 1 | 3/8 | 5/32 | 3/16 | 1/16 | 1/4 | |
| 2182 | 2 | 1/2 | 5/32 | 1/4 | 1/32 | 9/32 | |
| 2961 | 1 | 7/16 | 5/32 | 3/8 | 3/32 | 1/4 | |
| 2165 | 1 | 0.44 | 0.17 | 0.184 | 0.055 | 0.25 | |
| 121G | 1 | 17/32 | 5/32 | 13/32 | 5/32 | 13/32 | |
| 2642 | 1 | 5/8 | 5/32 | 13/64 | 3/64 | 7/16 | |
| 2256 | 3 | 5/8 | 11/64 | 5/16 | 1/16 | 15/32 | |
| 2356 | 3 | 5/8 | 11/64 | 9/32 | 1/32 | 15/32 | |
| 2533* | 3 | 0.386 | 0.187 | 0.2 | 0.054 | 0.25 | |
| 2919 | 1 | 0.412 | 0.187 | 0.275 | 0.06 | 0.312 | |
| 2175 | 3 | 3/8 | 3/16 | 11/64 | 3/64 | 1/4 | |
| 2178 | 1 | 3/8 | 3/16 | 3/16 | 1/32 | 1/4 | |
| 2179 | 3 | 3/8 | 3/16 | 3/16 | 1/16 | 1/4 | |
| 2162 | 3 | 7/16 | 3/16 | 9/32 | 3/32 | 19/64 | |
| 2629 | 1 | 0.406 | 0.187 | 0.27 | 0.102 | 0.296 | |
| 382A | 1 | 7/16 | 3/16 | 7/32 | 1/16 | 9/32 | |
| 215 | 1 | 7/16 | 3/16 | 7/32 | 1/16 | 5/16 | |
| 216 | 2 | 7/16 | 3/16 | 7/32 | 1/16 | 5/16 | |
| 415 | 1 | 7/16 | 3/16 | 1/4 | 3/32 | 5/16 | |
| 416 | 2 | 7/16 | 3/16 | 1/4 | 3/32 | 5/16 | |
| 2286A | 1 | 7/16 | 3/16 | 3/16 | 1/16 | 5/16 | |
| 2852A | 1 | 7/16 | 3/16 | 1/4 | 1/8 | 5/16 | |
| 2752A | 1 | 7/16 | 3/16 | 1/3 | 1/5 | 5/16 | |
| 2552A | 1 | 7/16 | 3/16 | 3/8 | 1/4 | 5/16 | |
| 2152 | 1 | 7/16 | 3/16 | 7/32 | 0.04 | 5/16 | |
| 2156 | 1 | 7/16 | 3/16 | 3/16 | 1/32 | 5/16 | |
| 2158 | 1 | 13/32 | 3/16 | 13/64 | 1/16 | 5/16 | |
| 2159 | 3 | 7/16 | 3/16 | 9/32 | 3/32 | 5/16 | |
| 2173 | 1 | 1/2 | 3/16 | 7/32 | 1/16 | 5/16 | |
| 2180 | 3 | 1/2 | 3/16 | 15/64 | 7/64 | 5/16 | |
| 2181 | 3 | 1/2 | 3/16 | 7/32 | 1/8 | 5/16 | |
| 809A | 5 | 5/8 | 3/16 | 1/4 | 1/16 | 5/16 | 7/16 |
| 2201A | 1 | 9/16 | 3/16 | 3/8 | 1/8 | 7/16 | |
| 217 | 1 | 1/2 | 3/16 | 7/32 | 1/16 | 3/8 | |
| 2171 | 1 | 1/2 | 3/16 | 3/16 | 1/32 | 3/8 | |
| 3377A | 1 | 7/16 | 3/16 | 7/32 | 3/32 | 5/16 | |
| 3317A | 1 | 5/8 | 3/16 | 3/8 | 3/32 | 11/32 | |
| 2351 | 1 | 5/8 | 3/16 | 11/32 | 1/16 | 3/8 | |
| 349G | 1 | 9/16 | 3/16 | 15/64 | 1/8 | 3/8 | |
| 2034 | 4 | 9/16 | 3/16 | 27/64 | 3/64 | 7/16 | 9/32 |
| 2201 | 1 | 9/16 | 3/16 | 3/8 | 1/8 | 7/16 | |
| 2038 | 3 | 11/16 | 3/16 | 3/8 | 1/8 | 1/2 | |
| 2672 | 5 | 11/16 | 3/16 | 23/32 | 1/16 | 1/2 | 7/16 |
| 2279A | 1 | 3/4 | 3/16 | 3/16 | 1/16 | 9/16 | |
| 2662 | 5 | 3/4 | 3/16 | 5/8 | 11/64 | 3/8 | |
| AN931-3-10+ | 1 | 7/8 | 3/16 | 3/16 | 1/16 | 5/8 | |
| 2119 | 1 | 27/32 | 3/16 | 5/16 | 1/16 | 21/32 | |
| 2122 | 5 | 1-1/4 | 3/16 | 5/16 | 1/16 | 1 | |
| 704A | 1 | 5/8 | 3/16 | 3/8 | 3/16 | 3/8 | |
| 2968 | 3 | 0.386 | 13/16 | 0.199 | 0.52 | 1/4 | |
| 2155 | 1 | 7/16 | 0.2 | 1/4 | 0.05 | 5/16 | |
| 2163 | 1 | 0.4 | 0.2 | 0.18 | 0.06 | 0.3 | |
| 2185 | 4 | 1/2 | 13/64 | 21/64 | 3/64 | 5/16 | 0.16 |
| 2161 | 1 | 7/16 | 13/64 | 5/32 | 1/32 | 21/64 | |
| 565A | 1 | 9/16 | 13/64 | 3/8 | 1/8 | 13/32 | |
| 2115 | 3 | 47/64 | 13/64 | 13/64 | 7/64 | 33/64 | |
| 565A | 1 | 9/16 | 13/64 | 3/8 | 1/8 | 13/32 | |
| 2538* | 3 | 7/16 | 0.204 | 1/4 | 1/16 | 0.35 | |
| 2126 | 4 | 0.443 | 0.212 | 0.295 | 1/16 | 5/16 | 0.173 |
| 2204 | 3 | 9/16 | 0.213 | 5/16 | 1/16 | 0.442 | |
| 2118 | 1 | 7/16 | 7/32 | 9/32 | 1/8 | 5/16 | |
| 2154 | 1 | 15/32 | 7/32 | 1/8 | 1/32 | 5/16 | |
| 1411A | 1 | 7/16 | 7/32 | 3/16 | 1/16 | 5/16 | |
| 2189 | 4 | 1/2 | 7/32 | 5/16 | 3/64 | 5/16 | 11/64 |
| 2638 | 4 | 1/2 | 0.22 | 0.343 | 0.032 | 0.312 | |
| 219 | 1 | 17/32 | 7/32 | 13/32 | 3/32 | 11/32 | |
| 2177 | 3 | 17/32 | 7/32 | 3/8 | 1/8 | 11/32 | |
| 2191 | 1 | 17/32 | 7/32 | 25/64 | 5/64 | 11/32 | |
| 2192 | 3 | 17/32 | 7/32 | 3/8 | 1/16 | 11/32 | |
| 2186 | 3 | 1/2 | 7/32 | 1/4 | 3/64 | 0.38 | |
| 1355A | 1 | 5/8 | 7/32 | 11/64 | 3/64 | 7/16 | |
| 2641 | 4 | 9/16 | 7/32 | 3/8 | 3/64 | 3/8 | 1/4 |
| 2678 | 4 | 3/4 | 7/32 | 5/16 | 1/16 | 1/2 | 1/2 |
| 1840A | 1 | 5/8 | 15/64 | 3/8 | 3/16 | 3/8 | |
| 2537* | 3 | 7/16 | 0.225 | 1/4 | 1/16 | 0.35 | |
| 2172 | 1 | 1/2 | 1/4 | 5/32 | 1/32 | 5/16 | |
| 2183 | 3 | 1/2 | 1/4 | 1/4 | 1/16 | 5/15 | |
| 2176 | 1 | 1/2 | 1/4 | 3/16 | 1/16 | 11/32 | |
| 203 | 4 | 9/16 | 1/4 | 9/32 | 1/16 | 3/8 | 5/32 |
| 220 | 1 | 9/16 | 1/4 | 1/4 | 1/16 | 3/8 | |
| 222 | 2 | 9/16 | 1/4 | 1/4 | 1/16 | 3/8 | |
| 320 | 2 | 9/16 | 1/4 | 5/16 | 1/8 | 3/8 | |
| 2036 | 4 | 1/2 | 1/4 | 21/32 | 0.05 | 3/8 | 1/2 |
| 2188 | 1 | 1/2 | 1/4 | 11/64 | 0.047 | 3/8 | |
| 535G | 1 | 1/2 | 1/4 | 1/4 | 1/16 | 3/8 | |
| 2684 | 5 | 9/16 | 1/4 | 1/4 | 1/16 | 5/16 | 3/8 |
| 2202 | 2 | 9/16 | 1/4 | 3/8 | 5/32 | 3/8 | |
| 2251 | 1 | 5/8 | 1/4 | 11/32 | 1/16 | 3/8 | |
| 2260 | 1 | 5/8 | 1/4 | 9/32 | 1/16 | 3/8 | |
| 2664 | 3 | 5/8 | 1/4 | 3/8 | 1/8 | 7/16 | |
| 2622 | 1 | 1/2 | 1/4 | 7/32 | 1/16 | 3/8 | |
| 3251 | 1 | 5/8 | 1/4 | 3/8 | 1/8 | 3/8 | |
| 523 | 1 | 19/32 | 1/4 | 11/64 | 3/64 | 13/32 | |
| 2039 | 4 | 21/32 | 1/4 | 3/8 | 1/16 | 13/32 | 7/32 |
| 2292 | 5 | 5/8 | 1/4 | 29/64 | 1/8 | 7/16 | 9/16 |
| 97A | 1 | 5/8 | 1/4 | 3/16 | 1/16 | 7/16 | |
| 2854A | 1 | 5/8 | 1/4 | 1/4 | 1/8 | 7/16 | |
| 2754A | 1 | 5/8 | 1/4 | 5/16 | 3/16 | 7/16 | |
| 2554A | 1 | 5/8 | 1/4 | 3/8 | 1/4 | 7/16 | |
| 2040 | 5 | 7/8 | 1/4 | 3/8 | 3/32 | 1/2 | 3/4 |
| 2257 | 1 | 5/8 | 1/4 | 17/32 | 9/32 | 1/2 | |
| 1086A | 1 | 3/4 | 1/4 | 11/64 | 1/16 | 9/16 | |
| AN931-4-12† | 1 | 1 | 1/4 | 1/4 | 1/16 | 3/4 | |
| 2298A | 1 | 1-1/4 | 1/4 | 1/4 | 1/16 | 1 | |
| 1116 | 3 | 1-1/2 | 1/4 | 7/16 | 1/16 | 1-3/16 | |
| 1106 | 3 | 1-1/2 | 1/4 | 7/16 | 1/16 | 1-1/4 | |
| 2903A | 1 | 1/2 | 1/4 | 1/4 | 1/8 | 3/8 | |
| 2903 | 1 | 0.812 | 0.25 | 0.5 | 0.255 | 0.562 | |
| 2627 | 1 | 0.625 | 0.255 | 0.28 | 0.093 | 0.425 | |
| 2411 | 4 | 9/16 | 17/64 | 19/64 | 3/64 | 3/8 | 9/64 |
| 233 | 3 | 5/8 | 17/64 | 3/8 | 1/8 | 15/32 | |
| 1100 | 5 | 3/4 | 17/64 | 1/4 | 0.035 | 15/32 | 5/8 |
| 81G | 1 | 5/8 | 17/64 | 5/16 | 1/16 | 15/32 | |
| 1240A | 3 | 5/8 | 17/64 | 5/16 | 1/16 | 15/32 | |
| 2255 | 1 | 5/8 | 17/64 | 5/16 | 1/16 | 7/16 | |
| 2290 | 5 | 11/16 | 17/64 | 1/4 | 1/16 | 7/16 | 9/16 |
| 190A | 1 | 11/16 | 9/32 | 7/16 | 1/4 | 15/32 | |
| 154G | 1 | 13/16 | 9/32 | 5/16 | 1/16 | 9/16 | |
| 763A | 1 | 9/16 | 9/32 | 1/4 | 1/16 | 3/8 | |
| 321 | 1 | 9/16 | 9/32 | 5/16 | 1/8 | 3/8 | |
| 2212 | 1 | 9/16 | 9/32 | 1/4 | 1/32 | 3/8 | |
| 2187 | 3 | 1/2 | 9/32 | 1/4 | 3/64 | 0.38 | |
| 2211 | 1 | 9/16 | 9/32 | 1/4 | 1/16 | 13/32 | |
| 2203 | 1 | 37/64 | 0.285 | 5/16 | 0.055 | 25/64 | |
| 2213 | 1 | 37/64 | 0.285 | 5/16 | 0.055 | 0.437 | |
| 2214 | 1 | 37/64 | 0.286 | 5/16 | 0.055 | 15/32 | |
| 265G | 1 | 19/32 | 5/16 | 15/64 | 1/16 | 7/16 | |
| 324 | 1 | 19/32 | 5/16 | 3/8 | 1/8 | 7/16 | |
| 505A | 3 | 5/8 | 5/16 | 9/32 | 1/16 | 7/16 | |
| 37G | 1 | 9/16 | 5/16 | 3/16 | 1/16 | 15/32 | |
| 2660 | 3 | 5/8 | 5/16 | 3/16 | 1/16 | 9/16 | |
| 316A | 3 | 9/16 | 5/16 | 1/2 | 3/8 | 3/8 | |
| 2252 | 1 | 5/8 | 5/16 | 1/4 | 1/16 | 7/16 | |
| 40000 | 1 | 5/8 | 5/16 | 1/4 | 1/16 | 7/16 | |
| 3378A | 1 | 5/8 | 5/16 | 5/16 | 3/32 | 7/16 | |
| 2352 | 1 | 5/8 | 5/16 | 7/32 | 1/32 | 7/16 | |
| 505A | 1 | 5/8 | 5/16 | 9/32 | 1/16 | 7/16 | |
| 2538A | 1 | 5/8 | 5/16 | 5/16 | 3/32 | 7/16 | |
| 3241 | 1 | 19/32 | 5/16 | 11/32 | 3/32 | 7/16 | |
| 1223 | 5 | 7/8 | 5/16 | 7/16 | 3/32 | 1/2 | 5/8 |
| 2033 | 4 | 11/16 | 5/16 | 27/64 | 5/64 | 1/2 | 1/4 |
| 2214A | 1 | 3/4 | 5/16 | 11/32 | 3/32 | 15/32 | |
| 2690 | 1 | 3/4 | 5/16 | 0.33 | 0.091 | 31/64 | |
| 3261 | 1 | 3/4 | 5/16 | 9/16 | 3/16 | 17/32 | |
| 3262 | 1 | 3/4 | 5/16 | 7/16 | 1/16 | 17/32 | |
| 2113A | 1 | 13/16 | 5/16 | 5/16 | 1/16 | 9/16 | |
| 2856A | 1 | 13/16 | 5/16 | 3/8 | 1/8 | 9/16 | |
| 2756A | 1 | 13/16 | 5/16 | 7/16 | 3/16 | 9/16 | |
| 2556A | 1 | 13/16 | 5/16 | 1/2 | 1/4 | 9/16 | |
| 114G | 4 | 11/16 | 5/16 | 27/64 | 5/64 | 1/2 | |
| 2274 | 1 | 7/8 | 5/16 | 5/16 | 1/16 | 5/8 | |
| 2272 | 1 | 7/8 | 5/16 | 11/32 | 3/32 | 11/16 | |
| 2125 | 1 | 1 | 5/16 | 11/32 | 3/32 | 3/4 | |
| 2280A | 1 | 1 | 5/16 | 5/16 | 1/16 | 3/4 | |
| 2857A | 1 | 1 | 5/16 | 3/8 | 1/8 | 3/4 | |
| 2757A | 1 | 1 | 5/16 | 7/16 | 3/16 | 3/4 | |
| 2557A | 1 | 1 | 5/16 | 1/2 | 1/4 | 3/4 | |
| 1113 | 1 | 1-1/16 | 5/16 | 1/2 | 5/32 | 3/4 | |
| AN931-5-13+ | 1 | 1-1/16 | 5/16 | 5/16 | 1/16 | 13/16 | |
| 1112 | 3 | 1-1/16 | 5/16 | 5/16 | 1/16 | 13/16 | |
| 671G | 1 | 1-7/8 | 5/16 | 3/8 | 1/16 | 1-1/2 | |
| 2128 | 5 | 0.595 | 0.322 | 23/32 | 0.265 | 7/16 | |
| 226 | 1 | 23/32 | 21/64 | 5/16 | 1/16 | 9/16 | |
| 204G | 1 | 3/4 | 21/64 | 3/8 | 3/32 | 35.64 | |
| 362G | 3 | 5/8 | 21/64 | 5/16 | 3/16 | 33/64 | |
| 1371A | 4 | 7/8 | 21/64 | 15/32 | 1/16 | 5/8 | 1/4 |
| 2117 | 3 | 5/8 | 0.35 | 19/54 | 3/16 | 33/64 | |
| 377G | 1 | 25/32 | 11/32 | 1/4 | 1/32 | 17/32 | |
| 2674 | 4 | 3/4 | 23/64 | 41/64 | 1/8 | 31/64 | 3/8 |
| 2635 | 5 | 0.59 | 0.362 | 0.156 | 0.031 | 0.48 | 0.51 |
| 671BG | 1 | 1-7/8 | 21/32 | 3/8 | 1/16 | 1-1/2 | |
| 224 | 2 | 5/8 | 3/8 | 1/4 | 1/16 | 1/2 | |
| 230A | 1 | 5/8 | 3/8 | 1/4 | 1/16 | 1/2 | |
| 325 | 2 | 5/8 | 3/8 | 5/16 | 1/8 | 1/2 | |
| 140G | 1 | 41/64 | 3/8 | 1/4 | 1/16 | 1/2 | |
| 1724A | 1 | 11/16 | 3/8 | 9/32 | 1/16 | 1/2 | |
| 2035 | 4 | 11/16 | 3/8 | 19.64 | 0.05 | 1/2 | 3/16 |
| 2250 | 1 | 5/8 | 3/8 | 1/4 | 0.05 | 1/2 | |
| 545G | 1 | 5/8 | 3/8 | 11/64 | 3/64 | 17/32 | |
| 1109 | 1 | 3/4 | 3/8 | 1/2 | 1/8 | 17/32 | |
| 546A | 1 | 3/4 | 3/8 | 3/8 | 1/8 | 17/32 | |
| 2258 | 1 | 5/8 | 3/8 | 11/32 | 1/16 | 17/32 | |
| 3373A | 1 | 5/8 | 3/8 | 13/32 | 1/8 | 1/2 | |
| 232 | 1 | 13/16 | 3/8 | 3/16 | 1/16 | 9/16 | |
| 828A | 1 | 3/4 | 3/8 | 1/2 | 1/4 | 1/2 | |
| AN930-2 | 1 | 3/4 | 3/8 | 3/8 | 1/16 | 9/16 | |
| AN930-3 | 1 | 3/4 | 3/8 | 3/4 | 3/8 | 9/16 | |
| 2123 | 3 | 3/4 | 3/8 | 9/16 | 3/8 | 19/32 | |
| 2596A | 3 | 3/4 | 3/8 | 3/4 | 3/8 | 9/16 | |
| 2281A | 1 | 7/8 | 3/8 | 5/16 | 1/16 | 5/8 | |
| 2858A | 1 | 7/8 | 3/8 | 3/8 | 1/8 | 5/8 | |
| 2758A | 1 | 7/8 | 3/8 | 7/16 | 3/16 | 5/8 | |
| 2558A | 1 | 7/8 | 3/8 | 1/2 | 1/4 | 5/8 | |
| 2271 | 1 | 7/8 | 3/8 | 5/16 | 1/16 | 5/8 | |
| 2273 | 3 | 15/16 | 3/8 | 17/32 | 5/32 | 5/8 | |
| 2275 | 1 | 7/8 | 3/8 | 5/16 | 0.07 | 5/8 | |
| 2299A | 1 | 1-1/4 | 3/8 | 1/4 | 1/16 | 1 | |
| 896A | 1 | 13/16 | 3/8 | 3/8 | 3/16 | 9/16 | |
| 2994 | 1 | 15/16 | 3/8 | 3/8 | 1/8 | 11/16 | |
| 715G | 1 | 1-1/16 | 3/8 | 5/16 | 1/16 | 13/16 | |
| 828A | 1 | 3/4 | 3/8 | 1/2 | 1/4 | 1/2 | |
| 44G | 1 | 49/64 | 13/32 | 13/32 | 7/64 | 39/64 | |
| 92G | 1 | 1 | 3/8 | 3/8 | 1/16 | 3/4 | |
| 1787A | 1 | 3/4 | 7/16 | 1/4 | 1/16 | 9/16 | |
| 2037 | 4 | 3/4 | 7/16 | 1/4 | 1/16 | 9/16 | 5/32 |
| 2263 | 1 | 3/4 | 7/16 | 1/4 | 0.08 | 9/16 | |
| 2114 | 1 | 3/4 | 7/16 | 3/8 | 0.05 | 19/32 | |
| 2860A | 1 | 15/16 | 7/16 | 3/8 | 1/8 | 11/16 | |
| 2760A | 1 | 5/16 | 7/16 | 7/16 | 3/16 | 11/16 | |
| 2533A | 1 | 15/16 | 7/16 | 3/8 | 1/8 | 11/16 | |
| 664G | 1 | 3/4 | 7/16 | 3/16 | 3/32 | 19/32 | |
| 2282A | 1 | 15/16 | 7/16 | 5/16 | 1/16 | 11/16 | |
| 3339A | 1 | 11/16 | 7/16 | 11/32 | 5/32 | 9/16 | |
| 560A | 3 | 11/16 | 7/16 | 3/8 | 3/16 | 9/16 | |
| 511G | 3 | 23/32 | 31/64 | 9/32 | 1/8 | 19/32 | |
| 531G | 1 | 13/16 | 15/32 | 13/32 | 7/64 | 41/64 | |
| 1244A | 1 | 1 | 7/16 | 1/2 | 1/4 | 11/16 | |
| 230 | 1 | 13/16 | 1/2 | 9/32 | 1/16 | 5/8 | |
| 231 | 2 | 13/16 | 1/2 | 9/32 | 1/16 | 5/8 | |
| 330 | 2 | 13/16 | 1/2 | 11/32 | 1/8 | 5/8 | |
| 137G | 1 | 7/8 | 1/2 | 1/4 | 1/16 | 21/32 | |
| 343G | 1 | 31/32 | 1/2 | 9/32 | 3/32 | 3/4 | |
| AN930-4 | 1 | 1 | 1/2 | 9/32 | 3/32 | 3/4 | |
| 930-41 | 1 | 1 | 1/2 | 1/4 | 1/16 | 3/4 | |
| 930-42 | 1 | 1 | 1/2 | 5/16 | 1/8 | 3/4 | |
| 2648 | 3 | 1 | 1/2 | 7/16 | 3/16 | 3/4 | |
| 809A | 1 | 1 | 1/2 | 5/8 | 3/8 | 3/4 | |
| 2283A | 1 | 1-1/16 | 1/2 | 5/16 | 1/16 | 13/16 | |
| 2861A | 1 | 1-1/16 | 1/2 | 3/8 | 1/8 | 13/16 | |
| 2761A | 1 | 1-1/16 | 1/2 | 7/16 | 3/16 | 13/16 | |
| 2561A | 1 | 1-1/16 | 1/2 | 1/2 | 1/4 | 13/16 | |
| 1102 | 1 | 1-1/16 | 1/2 | 5/16 | 1/16 | 13/16 | |
| 1110 | 1 | 1-1/16 | 1/2 | 11/32 | 1/8 | 13/16 | |
| 2654 | 3 | 1-1/16 | 1/2 | 13/16 | 1/2 | 13/16 | |
| 1118 | 1 | 1-1/8 | 1/2 | 0.302 | 1/16 | 7/8 | |
| 2426A | 1 | 1-1/4 | 1/2 | 1/4 | 1/16 | 1 | |
| 2983 | 1 | 1-1/4 | 1/2 | 5/16 | 1/8 | 1 | |
| 653A | 1 | 1 | 1/2 | 1/2 | 1/8 | 3/4 | |
| 2284A | 1 | 1-1/2 | 1/2 | 1/4 | 1/16 | 1-1/4 | |
| 538G | 1 | 25/32 | 35/64 | 9/32 | 1/16 | 21/32 | |
| 2295A | 1 | 1-1/16 | 9/16 | 5/16 | 1/16 | 13/16 | |
| 2763A | 1 | 1-1/16 | 9/16 | 7/16 | 3/16 | 13/16 | |
| 2563A | 1 | 1-1/16 | 9/16 | 1/2 | 1/4 | 13/16 | |
| 170G | 1 | 1-1/16 | 5/8 | 3/8 | 5/32 | 13/16 | |
| 2285A | 1 | 1-1/8 | 5/8 | 5/16 | 1/16 | 7/8 | |
| 2864A | 1 | 1-1/8 | 5/8 | 3/8 | 1/8 | 7/8 | |
| 2564A | 1 | 1-1/8 | 5/8 | 1/2 | 1/4 | 7/8 | |
| 2764A | 1 | 1-1/8 | 5/8 | 7/16 | 3/16 | 7/8 | |
| 1103 | 1 | 1-1/8 | 5/8 | 5/16 | 1/16 | 7/8 | |
| 2296A | 1 | 1-1/2 | 5/8 | 1/4 | 1/16 | 1-1/4 | |
| 2301 | 1 | 1-1/16 | 11/16 | 1/4 | 1/16 | 13/16 | |
| 2273A | 1 | 1-5/16 | 11/16 | 3/8 | 1/16 | 1 | |
| 2866A | 1 | 1-5/16 | 11/16 | 7/16 | 1/8 | 1 | |
| 2766A | 1 | 1-5/16 | 11/16 | 1/2 | 3/16 | 1 | |
| 2331A | 1 | 1-5/16 | 11/16 | 1/2 | 3/16 | 1 | |
| 2566A | 1 | 1-5/16 | 11/16 | 9/16 | 1/4 | 1 | |
| 2651 | 1 | 1-3/4 | 11/16 | 1/2 | 1/8 | 1-3/8 | |
| 510G | 3 | 31/32 | 47/64 | 9/32 | 1/16 | 27/32 | |
| 1117 | 1 | 1-1/8 | 3/4 | 9/32 | 1/16 | 7/8 | |
| 1107 | 1 | 1-1/8 | 3/4 | 5/16 | 3/32 | 15/16 | |
| 2867A | 1 | 1-3/8 | 3/4 | 7/16 | 1/8 | 1-1/16 | |
| 345G | 1 | 1-9/32 | 3/4 | 5/16 | 3/32 | 1-1/16 | |
| 804A | 1 | 1-3/8 | 3/4 | 3/8 | 1/16 | 1-1/16 | |
| 2567A | 1 | 1-3/8 | 3/4 | 9/16 | 1/4 | 1-1/16 | |
| 2767A | 1 | 1-3/8 | 3/4 | 1/2 | 3/16 | 1-1/16 | |
| 2868A | 1 | 1-5/8 | 3/4 | 5/16 | 1/8 | 1-1/4 | |
| 2274A | 1 | 1-5/8 | 3/4 | 1/4 | 1/16 | 1-1/4 | |
| 2275A | 1 | 1-13/16 | 3/4 | 3/8 | 1/16 | 1-7/16 | |
| AN931-12-26† | 1 | 2 | 3/4 | 3/8 | 1/16 | 1-5/8 | |
| 2196WA | 1 | 1-1/8 | NOTE 2 | 1/4 | 1/16 | 15/16 | |
| 2196SA | 1 | 1-1/8 | NOTE 1 | 1/4 | 1/16 | 15/16 | |
| 1105 | 1 | 1.16 | 13/16 | 1/4 | 3.64 | 15/16 | |
| 1224 | 2 | 1-3/16 | 13/16 | 25/32 | 1/2 | 15/16 | |
| 5632A | 1 | 1-1/4 | 13/16 | 7/8 | 9/16 | 15/16 | |
| 751 | 1 | 1-1/2 | 7/8 | 9/32 | 1/16 | 1-13/16 | |
| AN930-21 | 1 | 1-9/16 | 7/8 | 3/4 | 3/16 | 1-1/4 | |
| 2276A | 1 | 1-5/8 | 7/8 | 7/16 | 1/16 | 1-1/4 | |
| 2870A | 1 | 1-5/8 | 7/8 | 1/2 | 1/8 | 1-1/4 | |
| 2770A | 1 | 1-5/8 | 7/8 | 9/16 | 3/16 | 1-1/4 | |
| 40080 | 1 | 1-5/8 | 7/8 | 1/2 | 1/8 | 1-1/4 | |
| AN931-14-26† | 1 | 2 | 7/8 | 7/16 | 1/16 | 1-5/8 | |
| 40G | 2 | 1-3/4 | 1 | 7/16 | 1/16 | 1-3/8 | 1-1/2 |
| 2277A | 1 | 1-3/4 | 1 | 7/16 | 1/16 | 1-3/8 | |
| 2872A | 1 | 1-3/4 | 1 | 1/2 | 1/8 | 1-3/8 | |
| 2572A | 1 | 1-3/4 | 1 | 5/8 | 1/4 | 1-3/8 | |
| 2772A | 1 | 1-3/4 | 1 | 9/16 | 3/16 | 1-3/8 | |
| 2301A | 1 | 2-1/4 | 1 | 7/16 | 1/16 | 1-7/8 | |
| 327G | 1 | 1-33/64 | 1-1/64 | 3/8 | 1/8 | 1-17/64 | |
| 2092A | 1 | 1-7/8 | 1-1/8 | 3/8 | 1/16 | 1-1/2 | |
| 115G | 1 | 1-11/16 | 1-3/16 | 1/4 | 1/16 | 1-3/8 | |
| 40020 | 1 | 2-3/4 | 1-1/4 | 1/2 | 1/8 | 2-3/8 | |
| 1049 | 1 | 1-7/8 | 1-1/4 | 13/32 | 1/8 | 1-1/2 | |
| 2929 | 1 | 1-7/8 | 1-1/4 | 3/8 | 1/16 | 1-5/8 | |
| 2874 | 1 | 2-3/4 | 1-1/4 | 1/2 | 1/8 | 2-3/8 | |
| AN931-A20-40† | 1 | 2-7/8 | 1-1/4 | 1/2 | 1/8 | 2-1/2 | |
| 2802A | 1 | 2 | 1-5/16 | 7/16 | 1/8 | 1-5/8 | |
| 2034A | 1 | 2 | 1-1/2 | 1/2 | 1/4 | 1-3/4 | |
| 2278A | 1 | 2-1/8 | 1-1/2 | 7/16 | 1/16 | 1-3/4 | |
| 2875A | 1 | 2-1/8 | 1-1/2 | 1/2 | 1/8 | 1-3/4 | |
| 2575A | 1 | 2-1/8 | 1-1/2 | 5/8 | 1/4 | 1-3/4 | |
| 2775A | 1 | 2-1/8 | 1-1/2 | 9/16 | 3/16 | 1-3/4 | |
| 1104 | 1 | 2-1/8 | 1-1/2 | 7/16 | 1/16 | 1-3/4 | |
| AN931-24-44† | 1 | 3-1/4 | 1-1/2 | 7/16 | 1/16 | 2-3/4 | |
| 893G | 1 | 3-3/8 | 1-3/4 | 5/16 | 1/16 | 2-1/2 | |
| 27G | 1 | 2-25/32 | 1-15/16 | 3/8 | 5/64 | 2-7/16 |
Download the Grommets Sizing Chart
Large Rubber Grommets
Our years of experience have made us experts in rubber molding technology, allowing us to manufacture large rubber grommets for industrial distribution, automotive, and plumbing industries. We design our large rubber grommets to handle heavy-duty applications with ease, providing optimal protection against rough handling, vibrations, and moisture. We adhere to strict quality control standards to ensure that our products are long-lasting and durable.
We understand the importance of meeting project timelines and offer competitive pricing with fast turnaround times without compromising on product quality. At Accurate Products, we are committed to ongoing research and development in rubber technology to ensure that our product range continues to evolve and meet the ever-changing needs of our customers. Contact us today for all your rubber grommet needs!
Accurate Products is a leading manufacturer and distributor of rubber grommets, we have more than 65 years of experience in serving both the industrial distribution as well as O.E.M. markets with rubber grommets. If you want to inquire more about our rubber grommets, contact us today!
Rubber Grommets Specifications:
- Rubber Grommets are tear resistant
- Rubber Grommets have high heat resistance
- Rubber Grommets provide a cushion around small openings
Rubber Grommets Applications:
- Rubber Grommets are commonly used to protect or cover holes
- Rubber Grommets protect cables from sharp corners and edges
We make rubber grommets to your specifications! We carry large rubber grommets and small rubber grommets, as well as mil spec grommets. To place an order, call our order desk:
- TOLL FREE 1-800-782-7776
- In Illinois, call: 773-878-2200 | Fax:773-878-3239
Any more questions? Contact Us Today!
Fill out our contact form to get more information about our rubber grommets or any products that we offer. We look forward to speaking with you.
Frequently Asked Questions About Rubber Grommets
Q1. What Are Rubber Grommets Used For?
A: Rubber grommets are used to protect wires, cables, and hoses as they pass through metal or plastic openings. We manufacture grommets that reduce vibration, prevent abrasion, and seal out dust or moisture. These components are commonly used in automotive, electrical, industrial, and appliance applications. At Accurate Products, we focus on durability and consistent performance for demanding environments.
Q2. What Materials Are Rubber Grommets Made From?
A: We produce rubber grommets using a variety of elastomers, including natural rubber, EPDM, neoprene, silicone, and nitrile. Each material offers specific benefits such as heat resistance, chemical resistance, or flexibility. Our team helps customers select the right rubber grommet material based on application requirements. This ensures long-term reliability and proper fit.
Q3. How Do I Choose the Right Rubber Grommet Size?
A: Choosing the correct rubber grommet size depends on panel thickness, hole diameter, and the item passing through the opening. We recommend precise measurements to ensure a secure fit and optimal protection. Accurate Products offers standard rubber grommets in a wide range of sizes. If you need assistance, we can help guide you to the best option.
Q4. Can Rubber Grommets Be Customized for My Application?
A: Yes, we can support custom rubber grommet solutions for unique or specialized applications. While we offer an extensive selection of standard rubber grommets, some projects require specific dimensions or material properties. Our manufacturing expertise allows us to meet tight tolerances and performance needs. Customization helps ensure efficiency, safety, and longevity.
Q5. Why Choose Accurate Products for Rubber Grommets?
A: At Accurate Products, we bring decades of experience in rubber products manufacturing with a strong focus on quality and consistency. Our rubber grommets are engineered to meet industry standards and perform reliably in real-world conditions. We prioritize responsive service, technical support, and dependable supply. Call us at (773) 878-2200 to discuss your rubber grommet needs.
